DEPENDABLE STRENGTH. This trailer jack is rated to support up to 5,000 pounds trailer tongue weight
EASY OPERATION. This trailer tongue jack allows vertical movement and operates using a side-wind handle
CORROSION-RESISTANT. For long-lasting corrosion resistance against water, dirt, road salt and more
CORROSION-RESISTANT - For long-lasting corrosion resistance against water, dirt, road salt and more
Dramatically increases side load strength
Black powder coated to reduce corrosion
Zinc plated foot

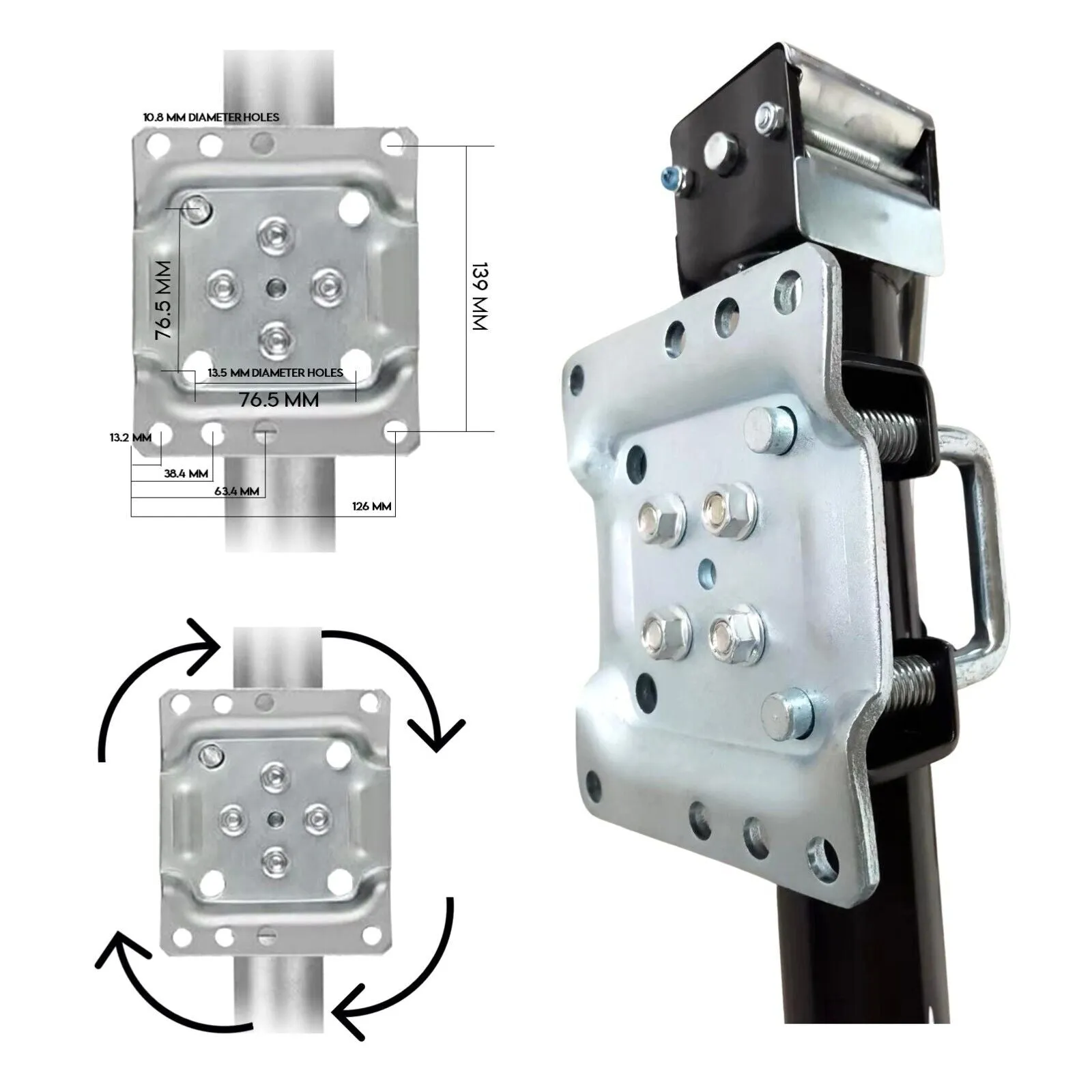

To install: Fit to draw bar with supplied brackets and bolts

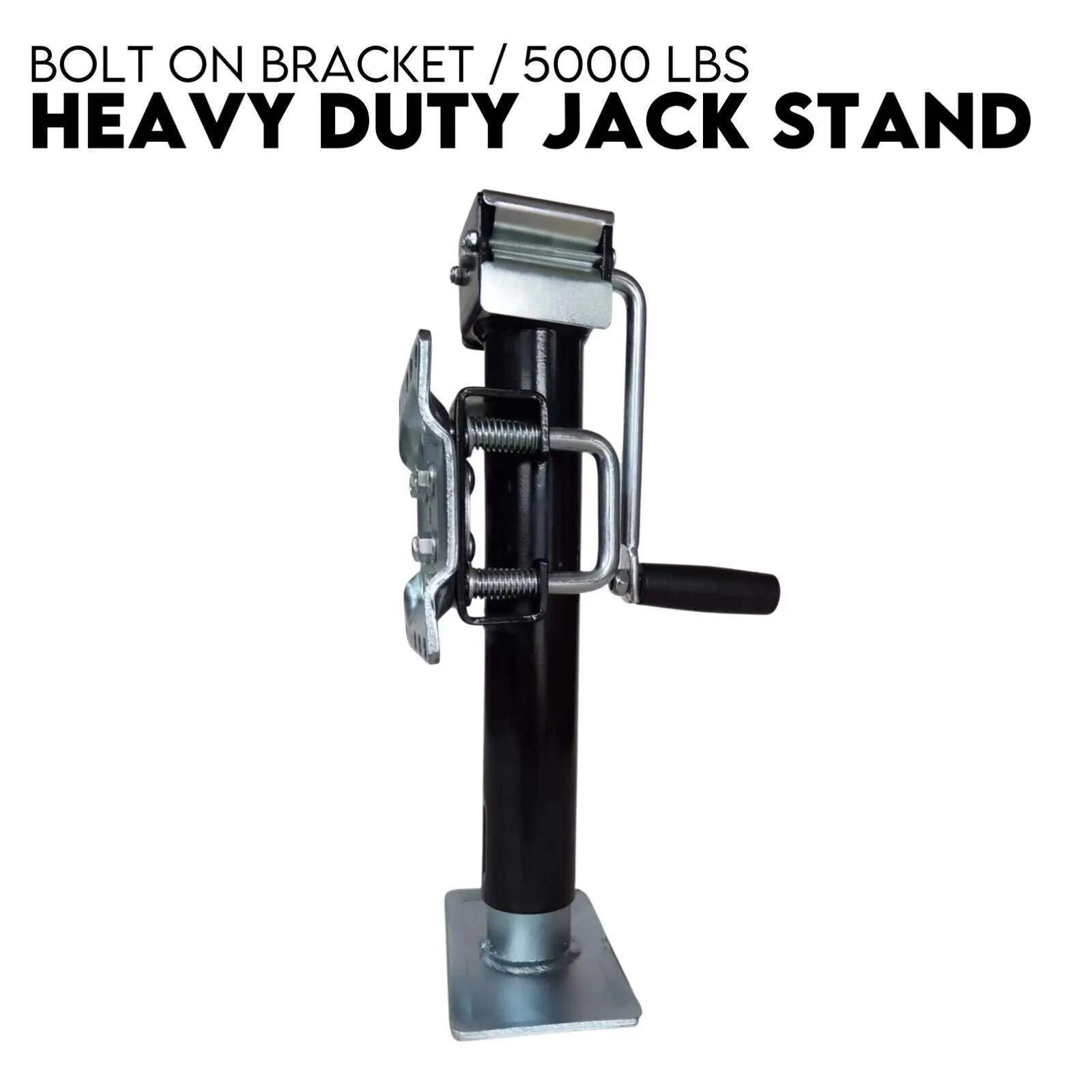

The Tradesman Round Jack Stand will lift your trailer of up to 5,000 lbs. This jack is made to be welded on the side frame of square trailer frames.
This trailer jack's footplate will save your trailer from sinking into the asphalt during the extreme heat. The slightly beveled edges of the rectangular jack footplate are also more advantageous than the usual concave models since it won't retain water and it has a more solid footprint.

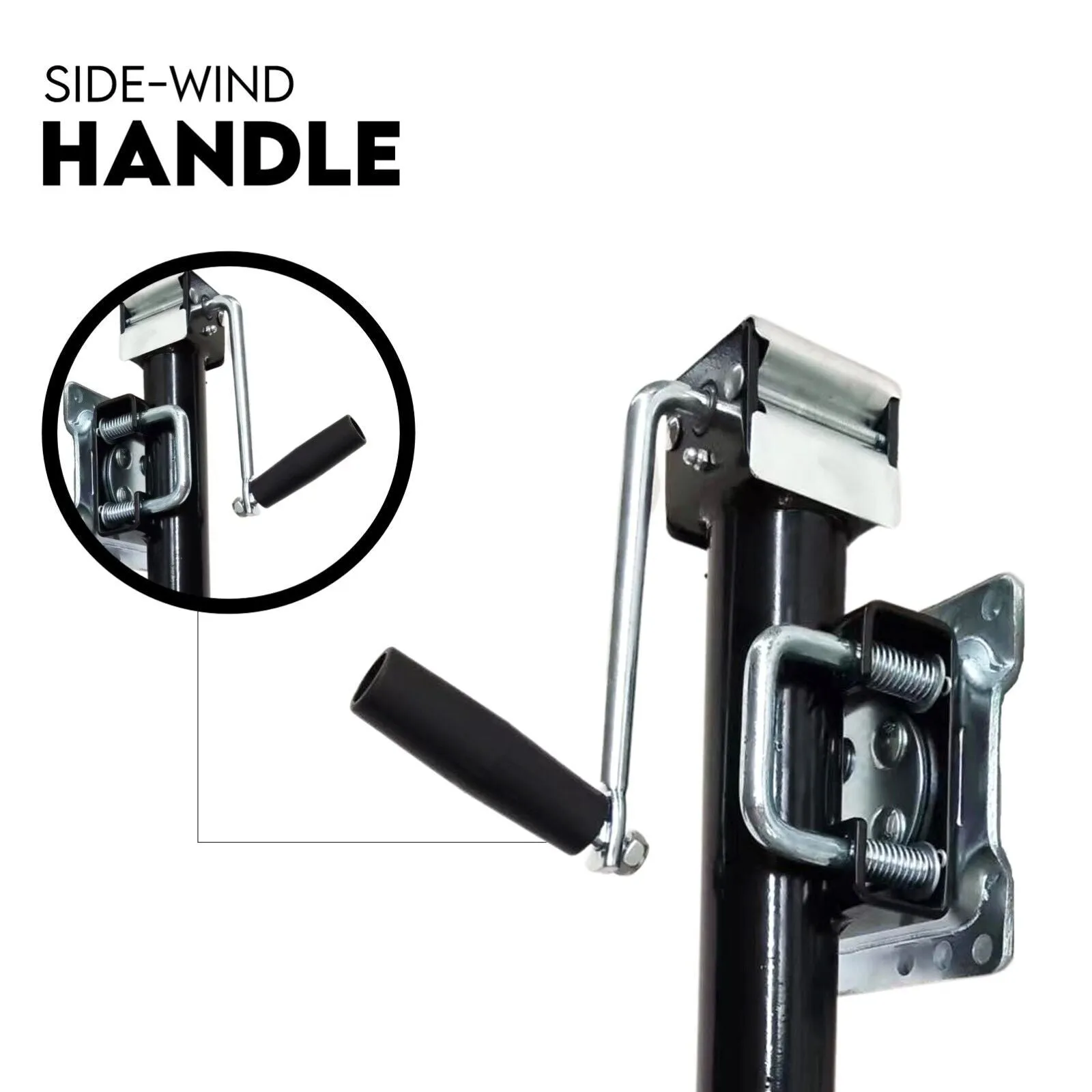

The side-wind handle is easy to grip and doesn't take a whole lot of effort to operate the jack, which lets you raise the entire trailer up and down easily - minimal cranking for quick adjustment.
It is quipped with swivel bracket and ensures plenty of clearance while towing your trailer. The jack swings up and out of the way for towing and features a heavy-duty pull grip to securely lock into place.
This product is easy for travel and storage. Great for everyday camper, marine trailers, fisherman or boating enthusiast.
SPECIFICATIONS
- RATED TO 5000LBS
- SIDE HANDLE

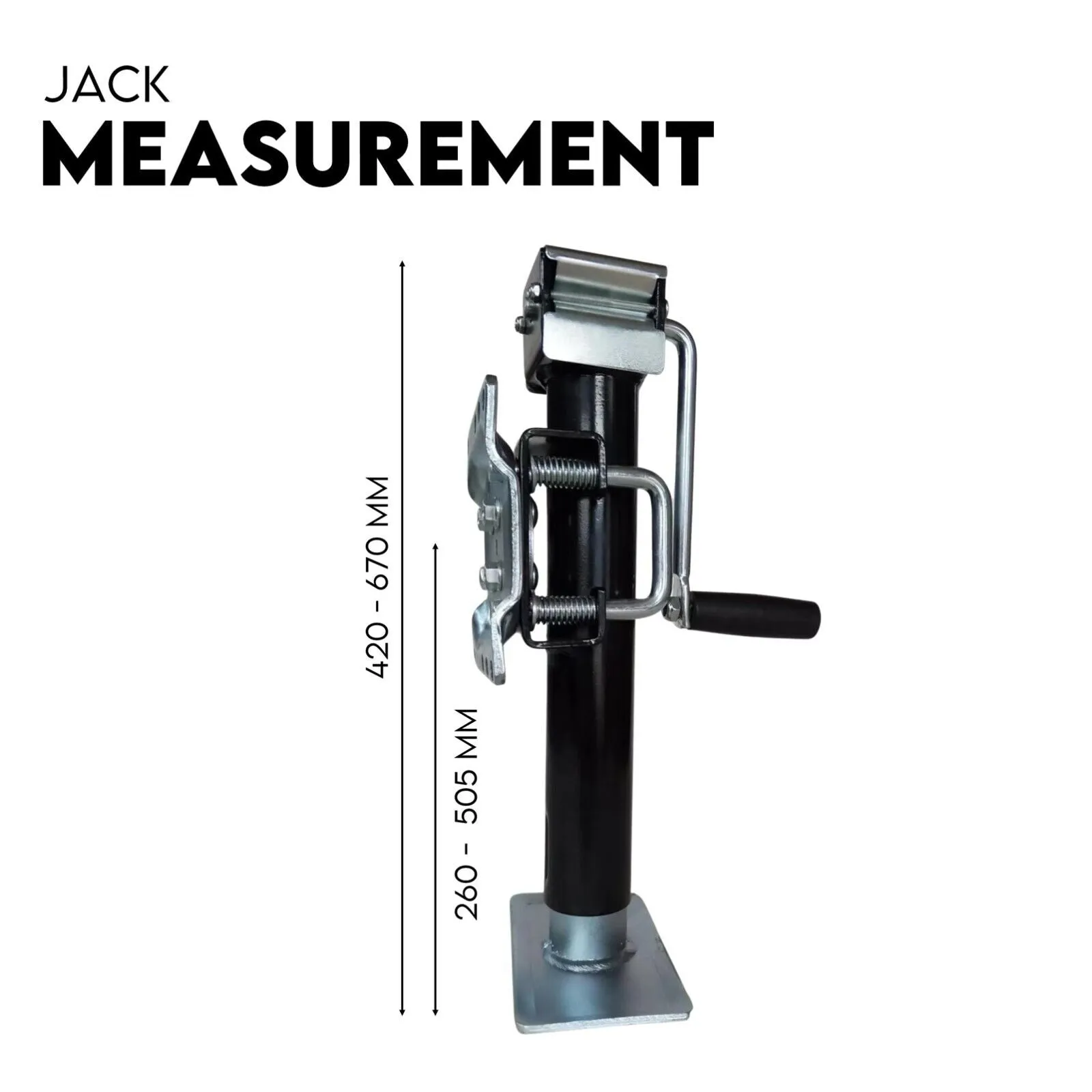

- Measurement from bottom to middle of draw bar bracket (when closed) is around 260mm
- Measurement from bottom to middle of draw bar bracket (fully extended) is around 505mm
- ADJUSTMENT 254mm
- PLATE: 4X7
IN THE BOX
1 - Round Jack
1 - Swivel clamp plate
1 - Spring loaded locking handle
Mounting bolts included
